Pattern C – Intermediate Holding Position Marking Stencil

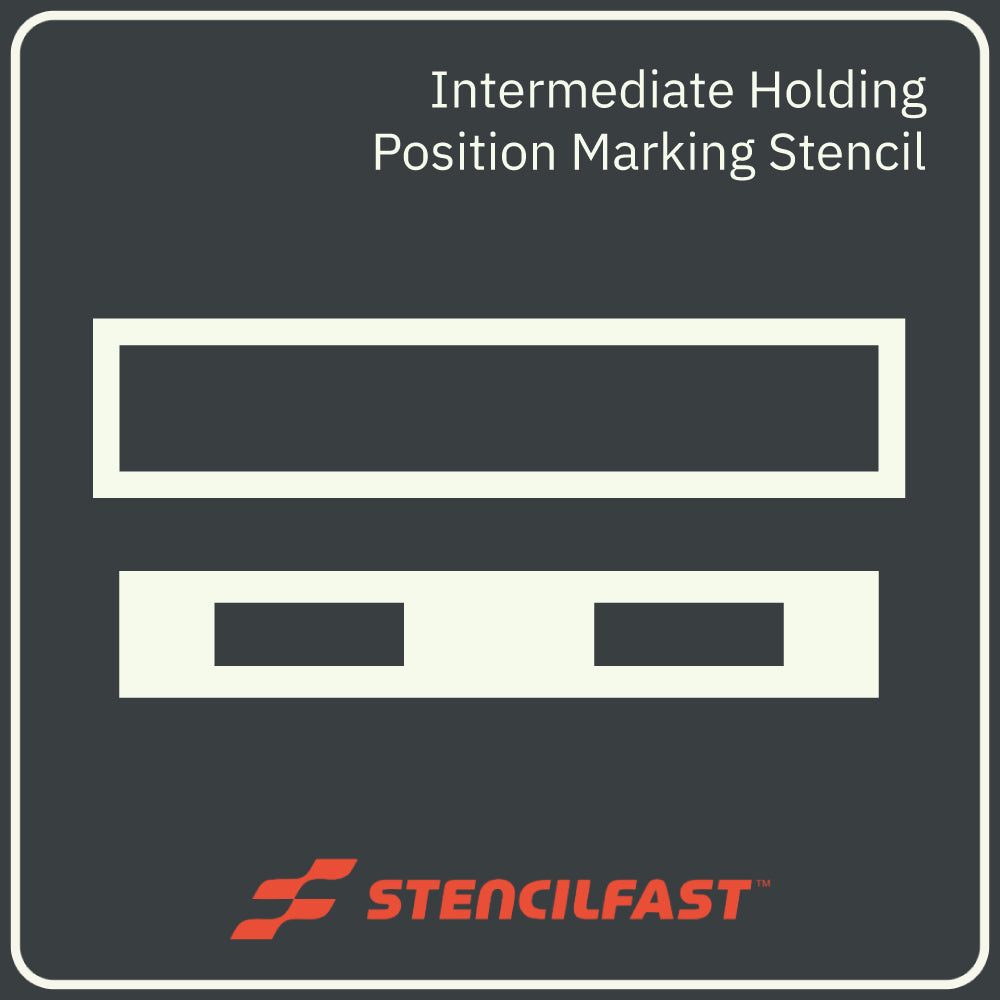

The Pattern C – Intermediate Holding Position Marking Stencil is a professional-grade, two-piece system designed for precision taxiway-to-taxiway intersection markings. This kit includes a 24" x 144" black background cutout and a secondary dash stencil featuring two 12" x 36" dashes.

To ensure a foolproof layout, the overall plastic footprint of the dash stencil matches the background cutout exactly, allowing for instant centering by simply aligning the edges of the sheets. The design also features integrated 18" offsets on the left and right sides. This allows crews to butt multiple stencils together end-to-end to automatically create the required 36" spacing between dashes without manual measurements.

Specifications

• Marking Type: Pattern C (Taxiway/Taxiway Intermediate Holding Position)
• System: 2-Piece Kit (Background Cutout & Dash Overlay)
• Background Dimensions: 24" x 144"
• Dash Dimensions: 12" x 36" (Two dashes per stencil)
• Integrated Spacing: 18" end-caps for automatic 36" gap creation
• Material: 1/10" LDPE
• Standard Compliance: Designed to meet FAA AC 150/5340-1 spacing requirements

Best For

• FAA Compliance: Precision-cut to meet standard airport pavement marking requirements for intermediate holding positions.
• Simplified Alignment: The matching plastic sizes eliminate guesswork, ensuring the dashes are perfectly centered over the background.
